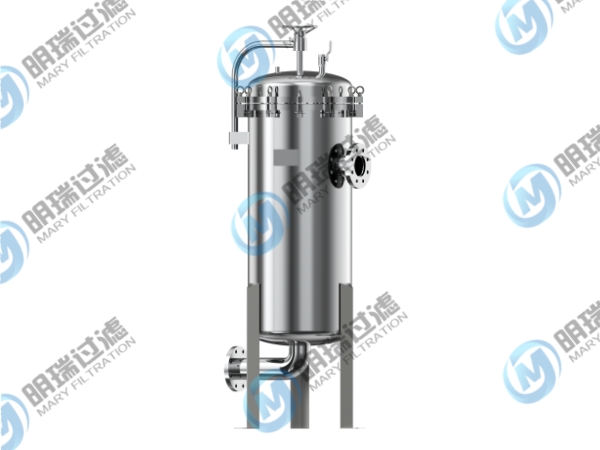

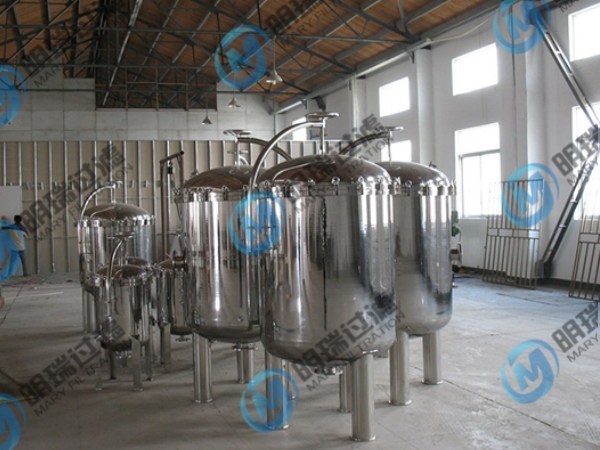

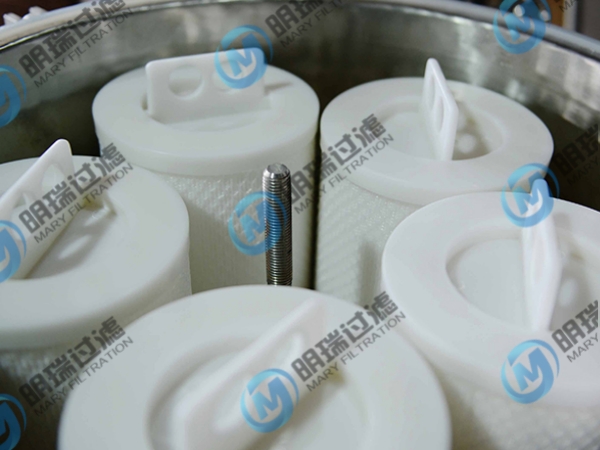

部件号 | 名称 |
1 | 端盖 |
2 | 快开 |
3 | 滤芯 |
4 | 筒体 |
5 | 支撑腿 |
工况条件 | |
设计压力： | 0.6mpa/1.0Mpa |
最高耐温： | 100°C |
材质 | |
过滤器壳体 | SS304/SUS316L |
上下封头 | SS304/SUS316L |
排气/排液阀 | SS304 |
摇臂 | SS304 |
支脚 | SS304/SS316L |
法兰 | SS304/SS316L |
密封圈 | 硅橡胶胶SILICOME /氟橡胶 FKM/ 四氟包覆密封圈 PFA |
滤芯参数 | |
滤芯直径 | 6inch |
滤芯长度 | 40inch/60inch |
滤芯精度 | 1um-100um(精度可选） |
滤芯品名 | MRPARK,MRPALL,MRPL-3M |
表面处理 | |
筒体内外表面处理 | 镜面抛光/喷砂处理/电解抛光 |
抛光精度 | 外Ra<0.4um，内Ra<0.6um |
接口 | |
筒体连接 | 快开螺栓/吊耳 |
进出口 | 法兰 |
压力表口 | M14*1.5内螺纹 |
排气口 | G1/2”外螺纹 |
排污口 | G1”外螺纹/法兰（可按要求） |
型号 | MRDLL-1-219 | MRDLL-3-400 | MRDLL-4-450 | ||||
规格 | 单芯40" | 单芯60" | 3芯40" | 3芯60" | 4芯40" | 4芯60" | |
OD | 筒体直径 | 219mm | 219mm | 400mm | 400mm | 450mm | 450mm |
H1 | 总高 | 1550mm | 2050mm | 1650mm | 2150mm | 1650mm | 2150mm |
L1 | 进口中心距 | 210mm | 210mm | 350mm | 350mm | 375mm | 375mm |
L2 | 进口离地距离 | 900mm | 1400mm | 950mm | 1450mm | 950mm | 1450mm |
O | 出口离地距离 | 200mm | 200mm | 250mm | 250mm | 250mm | 250mm |
D | 排污口离地距离 | 200mm | 200mm | 200mm | 200mm | 200mm | 200mm |
型号 | MRDLL-5-500 | MRDLL-6-550 | MRDLL-7-600 | ||||
规格 | 5芯40" | 5芯60" | 6芯40" | 6芯60" | 7芯40" | 7芯60" | |
OD | 筒体直径 | 500mm | 500mm | 550mm | 550mm | 600mm | 600mm |
H1 | 总高 | 1800mm | 2300mm | 2100mm | 2600mm | 2200mm | 2700mm |
L1 | 进口中心距 | 400mm | 400mm | 425mm | 425mm | 450mm | 450mm |
L2 | 进口离地距离 | 1150mm | 1650mm | 1300mm | 1800mm | 1300mm | 18000mm |
O | 出口离地距离 | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm |
D | 排污口离地距离 | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm |
